Cataract Instrument Tray

compiled by Elizabeth Gauger, MD. Photography by Randy Verdick, FOPS

Please note: Catalog numbers are current as of April 2013. Keep in mind, however, that these numbers will occasionally change.

Click on any image to see higher resolution photo

Instrument Tray with Lid, Storz E-7415

INstrument tray with lic

Top Tray

Description, common name, catalog number

Typical Use(s)


Forceps





Forcep Comparison

Bonn Forcep .12 Teeth

(aka Bonn Forceps)

catalog number: Storz E1809

Holding delicate tissue such as a scleral flap during glaucoma surgery; Has fine teeth smaller than classic .12 forceps

BonnBonn

Forcep Thumb, Utrata

(aka Utrara Forceps)

catalog number: Storz 2-719

Capsulorhexis; Remove stuck haptic from IOL optic

UtrataUtrata

Forcep, Iris serrated straight 4"

(aka smooth forceps)

catalog number: Storz E1400

Holding conjunctiva without teeth for glaucoma surgery

SmoothSmooth

Forcep Thumb, Castroviejo .12 mm tissue

(aka .12 forceps)

catalog number: Storz E1796

Workhorse of ophthalmology; Holding sclera, fixing eye for suture, tying platform

.12.12

Forcep Thumb, McPherson tying iris straight

(aka straight tie forceps)

catalog number: Storz E1815S

Tying suture, placing and removing iris hooks

straight tieStraight tie

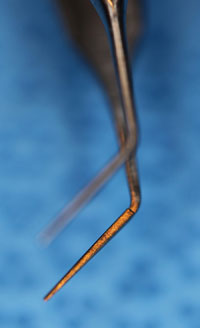

Forcep Thumb, McPherson tying iris angled

(aka angle tie forceps)

catalog number: Storz E1815A

Tying suture

Angle tieAngle TieAngle tie

COMPARISON: McPherson Angled Tying Forcep vs. Kellman McPherson Angled Tying Forcep

  Comparison

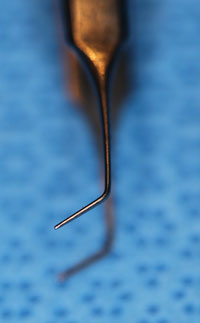

Forcep Thumb, Kellman-McPherson Angled T

(aka Kellman's forceps)

catalog number: Katena K5-5030

Very useful instrument; Substitute for angled tie; Removing material from AC

KellmansKellmans

Forcep, nucleus cracker

(aka Cracker)

catalog number: Storz 2-800

Crack nucleus after grooving

Nucleus crackerNucleus Cracker

SCISSORS

  Scissors

COMPARISON: Vannas and McPherson





Vannas McPhersonVannas McPherson

COMPARISON: Vannas Scissors (profile, close-up)



  Curves vs straight Vannas

Scissor, Vannas straight capsulotomy

(aka Vannas' scissors)

catalog number: Storz E-3386

Cut fine suture; Cut anterior capsule; iridotomy

VannaVannas

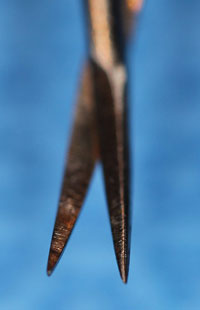

Scissor, Vannas curved capsulotomy

(aka Vannas' scissors)

catalog number: Storz E-3387
Cut fine suture; Cut anterior capsule; iridotomy

Vannas CurvedVannas Curved Scissors

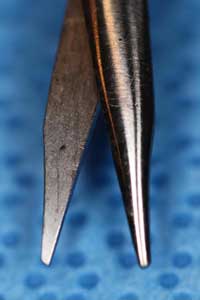

Scissor, Westcott tenotomy

(aka Westcott scissors)

catalog number: Storz E3320R

Peritomy; Dissection

Westcott Tenotomy blunt scissorsWestcott close-up

Knife Handle, Beaver 3K 4"

(aka Beaver)



Holding blades; (Rarely used)

Beaver knife handle

Knife, Corneal Gill lightly curved

(aka Gill knife)

catalog number: Storz E396

Scrape remaining tissue off of sclera

Gill KnifeGill Knife

Hook, Sinskey

(Sinsky)

catalog number: Storz E545

Rotate IOL; Position haptics

SinskySinsky

Kuglen Hook, angled, round handle

(aka Angled Kuglen)

catalog number: Katena K3-5523

Position IOL and haptics; Fix eye with paracentesis; Retrieve suture from AC

Angled Kuglen HookAngled Kuglen Hook

Kuglen Hook, straight, round handle

(aka Kuglen hook)

catalog number: Katena K3-5522

Position IOL and haptics; Fix eye with paracentesis; Retrieve suture from AC

Kuglen, straightKuglen, close up

Chopper, Nagahara phaco

(aka Old Chopper)

catalog number: Rhein AE-2517

Older chopper ; (rarely used now)

Nagahara Phaco chopperNagahara Phaco chopper

Chopper Seibel nucleus (left handed)

(aka Chopper)

catalog number: Rumex 415R

Nucleofractis; Sharp plate side (vertical); Ball side (Horizontal); Can use to rotate IOL and lens

Seibel nucleus chopperSeibel nucleus chopper Seibel nucleus chopper

Chopper, double ended (Seibel nucleus)

(aka Lefty Chopper)

catalog number: Rhein 08-14536R

Nucleofractis; Sharp plate side (vertical); Ball side (Horizontal); Can use to rotate IOL and lens

Double-ended nucleus chopper Close-up, end 1Close-up, end 2Seibel bucleus chopper

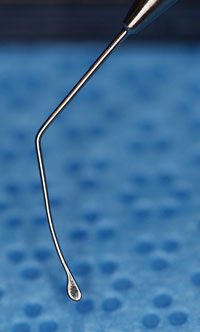

Drysdale nucleus manipulator

(aka Drysdale)

catalog number: Storz E0629

Very useful ; Spin lens; Polish posterior capsule

Drysdale Drysdale

Ring Thorton fixation

(aka Fixation Ring)

catalog number: Rhein AE-2198

Hold eye while making incision

Fine thornton scleral fixation ringFine thornton fixation ringFine thornton fixation ring

Spatula, cyclodialysis, double-ended Castroviejo

(aka Cyclo Spatula)

catalog number: Storz E489

Sweep for vitreous; Reposition iris

Cyclodialysisendcyclodialysis closeup

Speculum, Kratz-Barraquer wire lid (open)

catalog number: Storz E4106K



Barraquer-Eye-Open-Blade-Angled-Speculum

Bottom Tray

Click on any image to see higher resolution photo

Description, common name, catalog number

Typical Uses


Scissor, eye angular probe points

(aka Lash Drape scissors)

catalog number: Storz E3436

Cutting drape

Eye Angled blade probe point scissors
Eye Angled blade probe point scissors

Scissor, Stevens tenotomy curved

(aka Stevens)

catalog number: Storz E3562

Dissection into quadrants

Stevens tonotomy scissors
Stevens tonotomy scissors

Scissors, Mayo dissecting straight 5 "

(aka Big Scissors)

catalog number: V Mueller SU1800

Cutting drapes

Mayo scissors Mayo scissors

Needleholder, micro titanium micra curved

(aka Needle driver)

catalog number: Micra N303W

Placing fine suture

needleholder Needle driver

Needleholder, Castroviejo straight with lock

catalog number: Codman 4140

Rarely used in cataract surgery; placing 4-0 silk bridle suture

Needleholder with lock

Forceps, Halsted mosquito forceps 5" curved

(aka Mosquito forceps)

catalog number: V Mueller SU2702

Holding suture to drape

Mosquito forceps

Security clamp, Edwards

(aka Edwards)

catalog number: Cardinal Health 200 Inc. 58425

Securing drape

Edwards security clamp



last updated: 04/30/2013
